Product picture |
PartNumber |
Describe
请选择
请选择
0.6A Linear Charger IC with OVP
1A Linear Charger IC with OVP
1A high performance Linear Charger IC with OVP
3A buck charger
High-accuracy Linear Charger
Linear Charger with PPM
Linear Charger with PPM and UART
|
VIN (V)
请选择
请选择
3.5~28
3.9~13.5
3~20
4.35~20
4.3~28
4.55~28
4.5~36
|
VIN OVP (V)
请选择
请选择
6
6.1
6.4~14.2
6.65
6.8
6.9
7
|
VBATREG (V)
请选择
请选择
3.6~4.527 ±0.5%
3.6~4.545 ±0.5%
3.856~4.624 ±0.5%
4.175/4.314 ±0.5%
4.2
4.2/4.35 ±0.5%
4.2/4.35 ±1%
|
ICHRG (mA)
请选择
请选择
0~3074.5
10~250
2~510
8~512
Max 1000
Max 1100
Max 1200
Max 600
|
IBAT (μA)
请选择
请选择
0.005
0.075
0.3
0.6
1
1.5
5
22
|
Features
请选择
请选择
IIC、PPM、DPM、BC1.2、OTG
IIC、PPM、DPM、NTC function and auto recharge
IIC、PPM、DPM、NTC、UART、JACK-in/out detection
Low leakage, charging indicator, low heating
Not Need MCU Control,CHG State
Not Need MCU Control,PG and CHG State
USB100 /USB 500/ ISET Mode , EN pulse control
Ultra-low leakage Current, High Accuracy
|
Package
请选择
请选择
CSP12(0.4 pitch)
CSP6(0.4 pitch)
CSP9(0.5 pitch)
DFN10(3X2)
DFN8(2X2)/SOT23-6
DFN8(3X3)
QFN24(4x4)
SOT23-5
|
|---|---|---|---|---|---|---|---|---|---|
|
ET95153 | 1A high performance Linear Charger IC with OVP | 4.5~36 | 7 | 4.2/4.35 ±0.5% | Max 1000 | 0.005 | Low leakage, charging indicator, low heating | DFN8(3X3) |
|

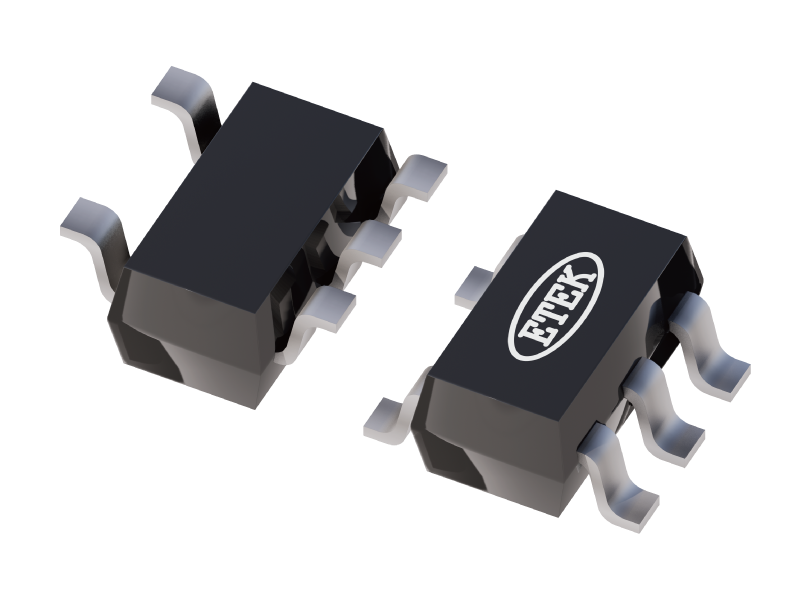

ET95164 | 0.6A Linear Charger IC with OVP | 4.5~36 | 6.1 | 4.2 | Max 600 | 0.6 | Not Need MCU Control,CHG State | SOT23-5 |
|

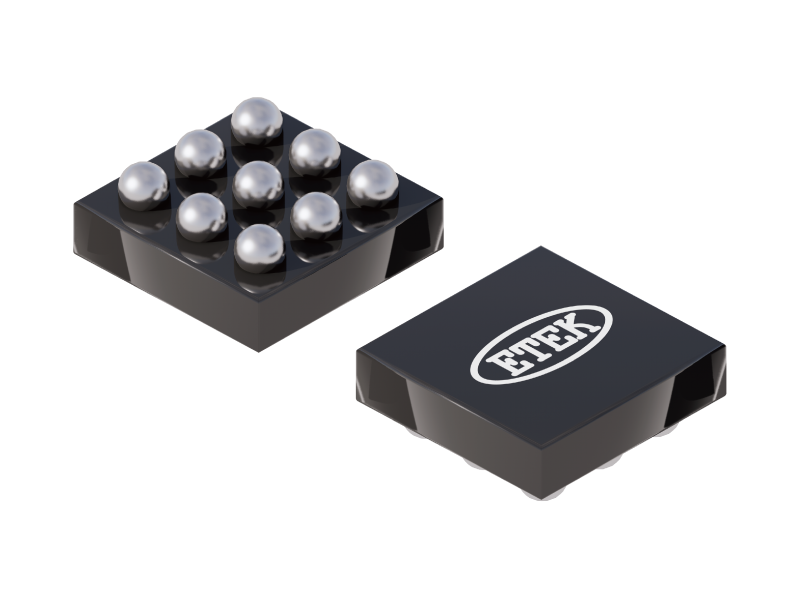

ET9562 | Linear Charger with PPM | 4.35~20 | 6 | 3.6~4.545 ±0.5% | 8~512 | 1.5 | IIC、PPM、DPM、NTC function and auto recharge | CSP9(0.5 pitch) |
|

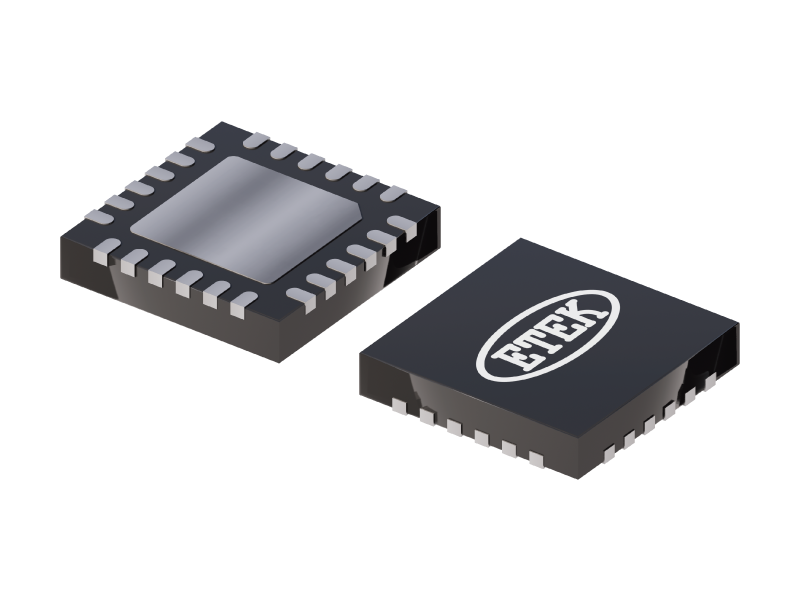

ET95601CX | 3A buck charger | 3.9~13.5 | 6.4~14.2 | 3.856~4.624 ±0.5% | 0~3074.5 | 22 | IIC、PPM、DPM、BC1.2、OTG | QFN24(4x4) |
|

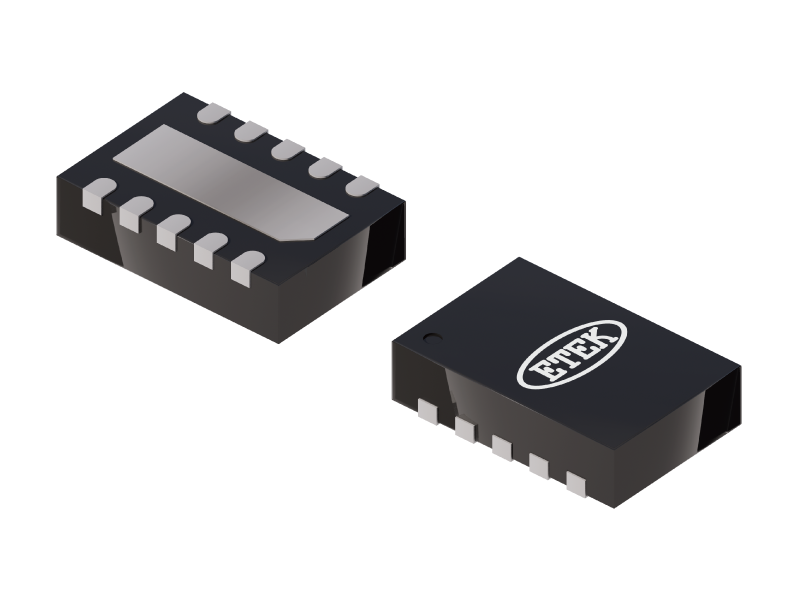

ET9513C | High-accuracy Linear Charger | 4.3~28 | 6.9 | 4.175/4.314 ±0.5% | Max 1200 | 5 | USB100 /USB 500/ ISET Mode , EN pulse control | DFN10(3X2) |
|

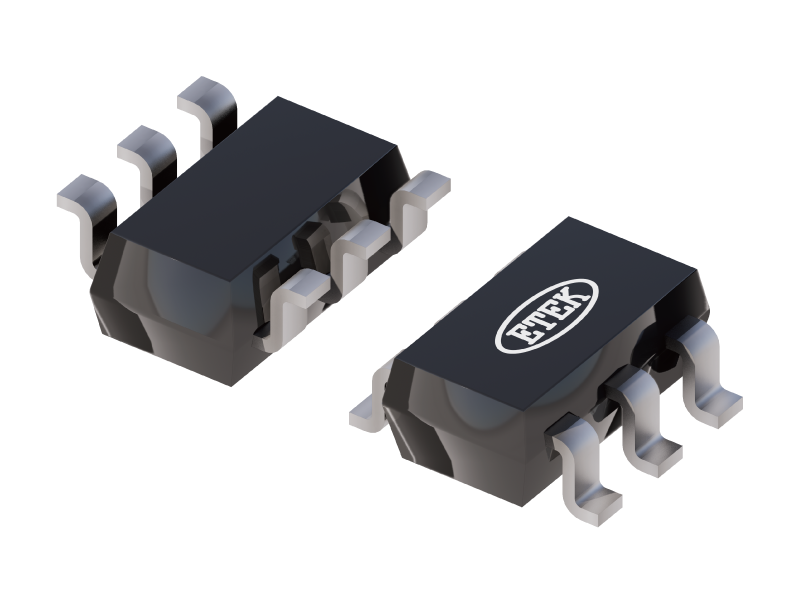

ET9515 | 1A Linear Charger IC with OVP | 4.55~28 | 6.8 | 4.2/4.35 ±1% | Max 1100 | 1 | Not Need MCU Control,PG and CHG State | DFN8(2X2)/SOT23-6 |
|

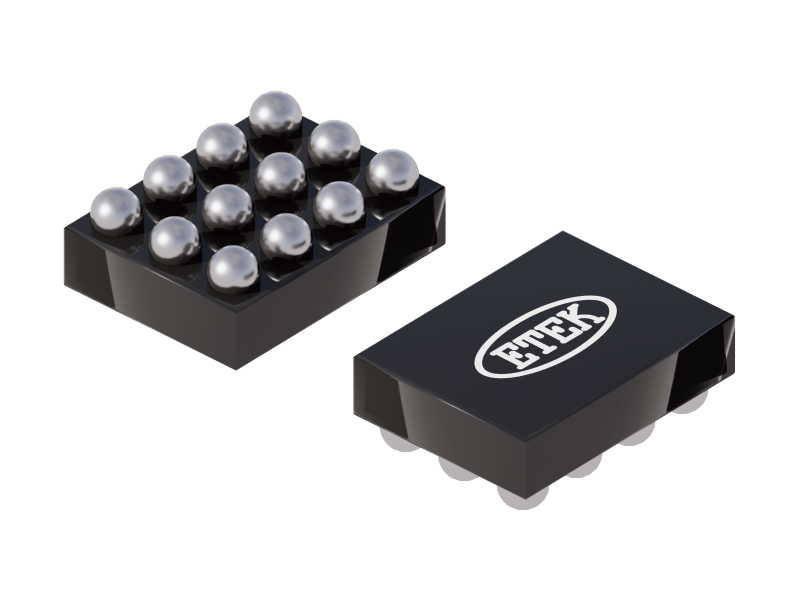

ET9563 | Linear Charger with PPM and UART | 3~20 | 6 | 3.6~4.527 ±0.5% | 2~510 | 0.3 | IIC、PPM、DPM、NTC、UART、JACK-in/out detection | CSP12(0.4 pitch) |
|
ET95101/H | High-accuracy Linear Charger | 3.5~28 | 6.65 | 4.2/4.35 ±1% | 10~250 | 0.075 | Ultra-low leakage Current, High Accuracy | CSP6(0.4 pitch) |
